BMW E36 Rear Rally Suspension kit for E60M Diff

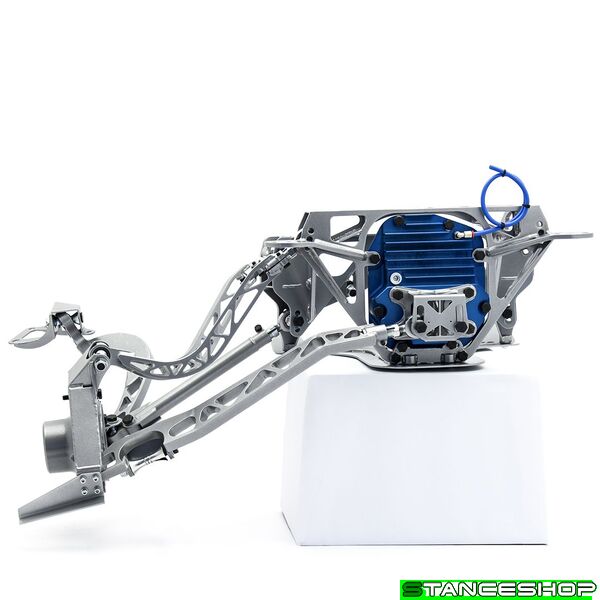

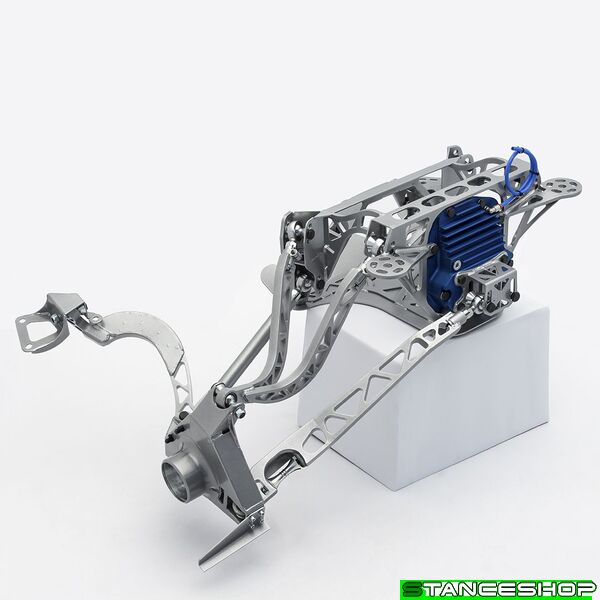

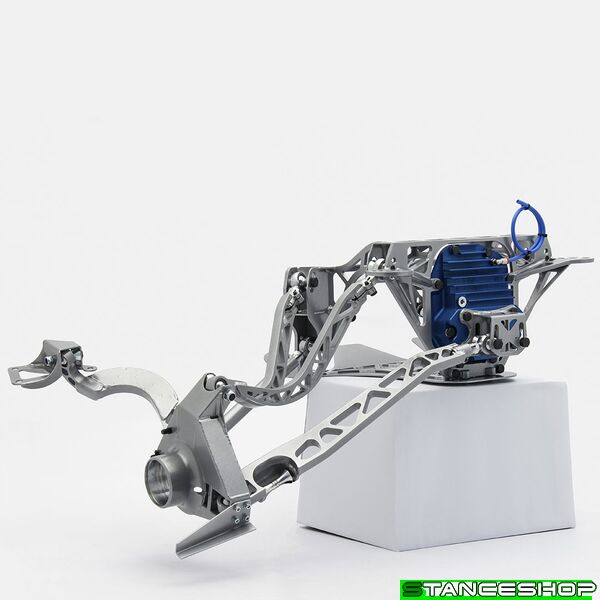

BMW E36 Complete Rear Axle for Rally
- The main idea with Wisefab axle is to have better kinematics for long stroke and soft suspension and therefore more rear grip, especially sidegrip in the corners on throttle. Some kinematic differences are less rollcentre migration, good camber gain at rideheight, but smaller at full droop compare to original, different antisquat curve, less scrub(track change) with vertical movement, good bumpsteer etc.
- Better ground clearance. Arms and links are placed higher to have less risk of hitting rocks with suspension components. That could also end up with lowered rideheight with better handling and more grip.
- BMW TYP 210 differential. The differential is a structural part of rear subframe. The bolt on for Wisefab axle is E60 M5 differential, which has a flange for bigger inner CV joint or we have a bracket to fit E32/E34 TYP 210 LSD or with different bracket E36 TYP 210 LSD differential, that was used only with 3.2liter engine.
- 7075-T6 billet CNC machined differential cover. The rear differential cover is also structural part, therefore it is made of 7075-T6 aluminium. It is stronger and has slighly bigger oil capacity.
- Subframe, links and arms are made of high strength steel to have required strength. Subframe, arms links and uprights are designed the way that in case of damage, the arms are the first to brake as these are the easiest to replace .
- Motion ratio (shock stroke /wheel stroke) is 0,935, when originally it is 1,1. It would give 17% more wheeltravel. For example with 200mm shock absorber stroke the Wisefab axle wheeltravel is 216mm, when originally it has 184mm with the same shock absorber stroke. On spring stiffness side it means that about 35% stiffer springs should be used compared to original axle to get the same wheelrate.
- Halfshafts are equal length for ease of replacements.
- Room for bigger CV joints. The uprights and subframe is designed to fit much stronger 120mm diameter CV joints that can be found from E60M and E90M. (CV-s and shafts are not included in the kit)
- Tested with 260mm stroke shock absorbers, which made 280mm of wheeltravel.
- Room left for 2x62mmOD muffler tubes.
- If wheelspeed reading is important, then E90 rear wheelbearings should be used instead of E36 M3 ones and E90 wheelspeed sensor, that attaches to upright.
- All the components are zink coated.

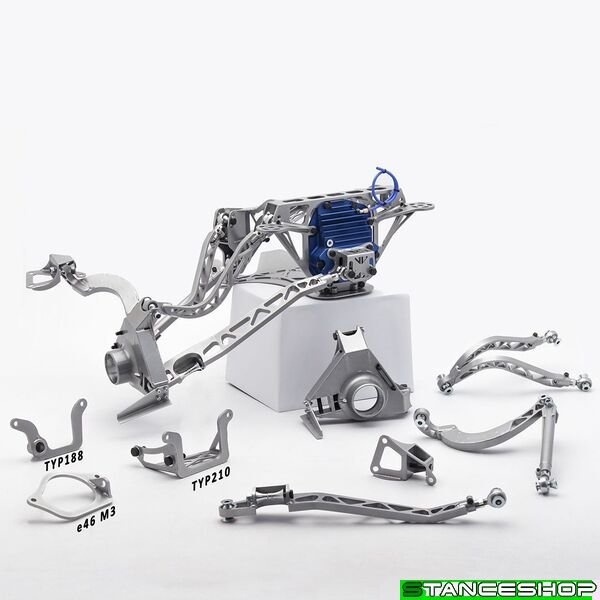

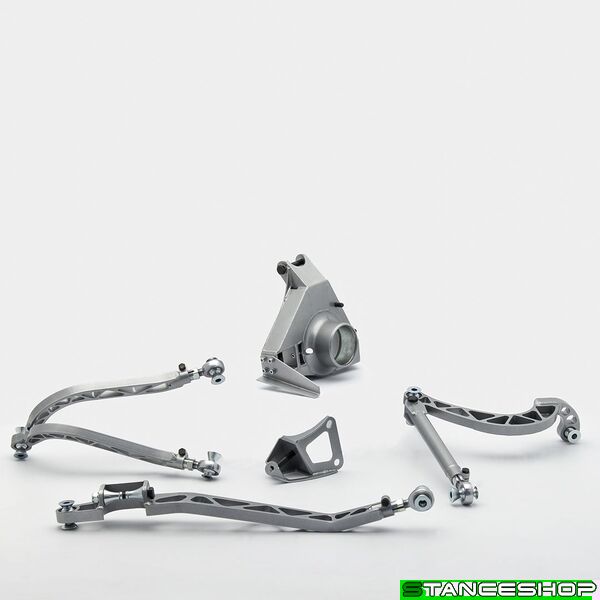

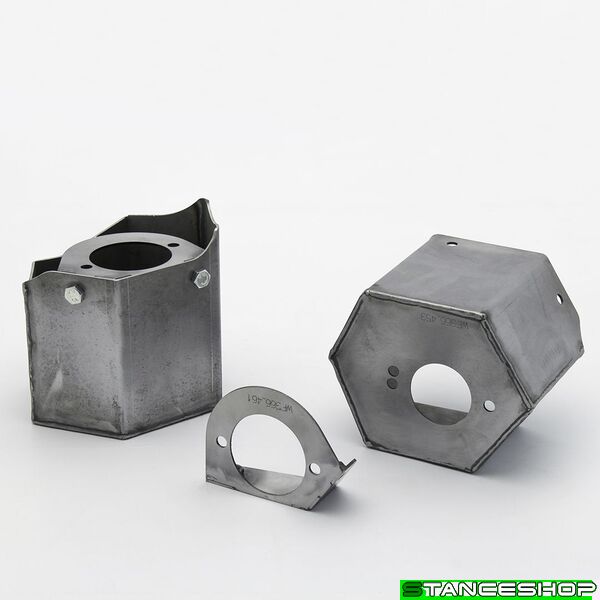

Complete parts
3
Suspension Arm #7
WF366_700A
145.00€
4
Suspension Arm #3
WF366_300A
310.00€
7
Subframe
WF366_400A
485.00€
8
Final Drive Cover
WF366_601A
345.00€
9
Toelink Mount
WF366_600A
105.00€
10
Final Drive Rear Mount
WF366_620A
90.00€
11
Skid Plate
WF366_800
130.00€
12
BushingT ID12.5 OD30 h12.5
WF366_904
8.40€

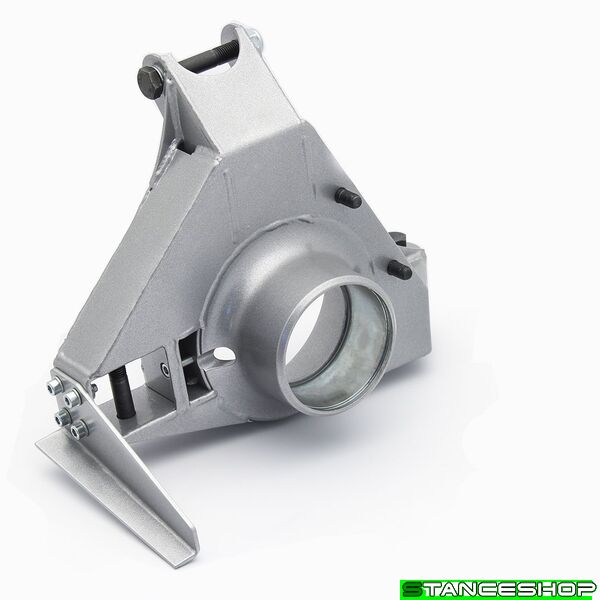

Left Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
3
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
4
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
5
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
6
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
7
Bolt Allen M 6x1.0x 16 RH 8.8 ZN DIN 912
B01206100016R2ZD912
1.50€
8
Washer Flat M 6 ZN DIN125
B03106NAZD125
1.50€
9
Scraper
Right Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
3
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
4
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
5
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
6
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
7
Bolt Allen M 6x1.0x 16 RH 8.8 ZN DIN 912
B01206100016R2ZD912
1.50€
8
Washer Flat M 6 ZN DIN125
B03106NAZD125
1.50€
Left Suspension Arm #2
1
Suspension Arm #2
2
Spacer ID12 OD16 h11.9
WF113_903
8.40€
3
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
4
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
5
Spacer ID12 OD16 h10
WF013_903
8.40€
6
Spacer ID12 OD16 h19
WF861_901
8.40€
Right Suspension Arm #2
1
Suspension Arm #2
2
Spacer ID12 OD16 h11.9
WF113_903
8.40€
3
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
4
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
5
Spacer ID12 OD16 h10
WF013_903
8.40€
6
Spacer ID12 OD16 h19
WF861_901
8.40€
Suspension Arm #7
1
Suspension Arm #7
WF366_700A
145.00€
2
Spacer ID12 OD16 h19
WF861_901
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
5
Double Adjuster Female/Male M16x1.5 M22x1.5
WF700_906
15.00€
6
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
7
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
4.20€
8
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
9
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
Suspension Arm #3
1
Suspension Arm #3
WF366_300A
310.00€
2
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Spacer ID12 OD16 h19
WF861_901
8.40€
5
Double Adjuster Female/Male M16x1.5 M22x1.5
WF700_906
15.00€
6
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Left Suspension Arm #5
1
Suspension Arm #5
2
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Spacer ID12 OD16 h19
WF861_901
8.40€
5
Double Adjuster Female/Male M16x1.5 M22x1.5
WF700_906
15.00€
6
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
7
Bolt Hex M12x1.5x100 RH 10.9 ST DIN 960
B01112150100R3SD960
6.30€
8
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
9
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
10
Spacer ID12 OD15 h28
WF366_903
8.40€
11
Spacer ID12 OD16 h11.9
WF113_903
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Right Suspension Arm #5
1
Suspension Arm #5
2
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Spacer ID12 OD16 h19
WF861_901
8.40€
5
Double Adjuster Female/Male M16x1.5 M22x1.5
WF700_906
15.00€
6
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
7
Bolt Hex M12x1.5x100 RH 10.9 ST DIN 960
B01112150100R3SD960
6.30€
8
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
9
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
10
Spacer ID12 OD15 h28
WF366_903
8.40€
11
Spacer ID12 OD16 h11.9
WF113_903
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Left Suspension Arm #2 Bracket
1
Suspension Arm #2 Bracket
2
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Bolt HexThin M12x1.50x 70 RH 10.9 ST SPC
WF366_908
10.00€
Right Suspension Arm #2 Bracket
1
Suspension Arm #2 Bracket
2
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Bolt HexThin M12x1.50x 70 RH 10.9 ST SPC
WF366_908
10.00€
Subframe
1
Subframe
WF366_400A
485.00€
2
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
3
Bolt AllenFlat M10x1.50x 20 RH 8.8 ZN DIN7991
B01310150020R2ZD7991
2.80€
5
Bolt Hex M12x1.5x 40 RH 10.9 ST DIN 961
B01112150040R3SD961
4.20€
6
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
7
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
Final Drive Cover
1
Final Drive Cover
WF366_601A
345.00€
2
Final Drive Breather Wall
WF366_610
8.40€
3
Bolt AllenButton M 4x0.7x 6 RH 8.8 ZN ISO7380
B01404070006R2ZI7380
1.50€
5
Fitting Pneumo 90° angle
FP_8_G1/8_A90
6.00€
6
Washer Copper M10x15x1.5 ST DIN7603
B0341015SD7603
1.50€
7
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
8
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
9
Bolt Hex M10x1.5x 30 RH 10.9 ST DIN 933
B01110150030R3SD933
2.80€
10
Bolt Hex M10x1.5x 16 RH 10.9 ST DIN 933
B01110150016R3SD933
1.50€
11
Washer Copper M16x20x1.5 ST DIN7603
B0341615SD7603
1.50€
12
Bolt AllenPlug M16x1.5x 12 RH 8.8 ZN DIN908
B01716150012R2ZD908
2.80€
Toelink Mount
1
Toelink Mount
WF366_600A
105.00€
2
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
Final Drive Rear Mount
1
Final Drive Rear Mount
WF366_620A
90.00€
2
Bolt AllenFlat M10x1.50x 20 RH 8.8 ZN DIN7991
B01310150020R2ZD7991
2.80€
4
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
6
Bolt Hex M10x1.5x 30 RH 10.9 ST DIN 933
B01110150030R3SD933
2.80€
Skid Plate
1
Skid Plate
WF366_800
130.00€
Image currently unavailable
BushingT ID12.5 OD30 h12.5
1
BushingT ID12.5 OD30 h12.5
WF366_904
8.40€
