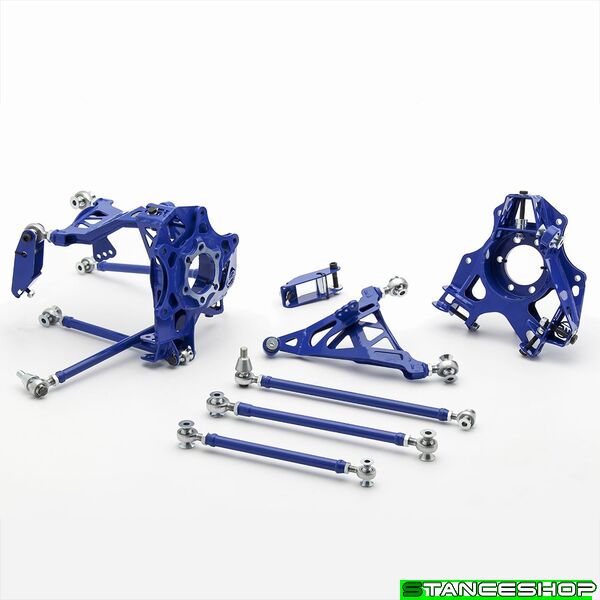

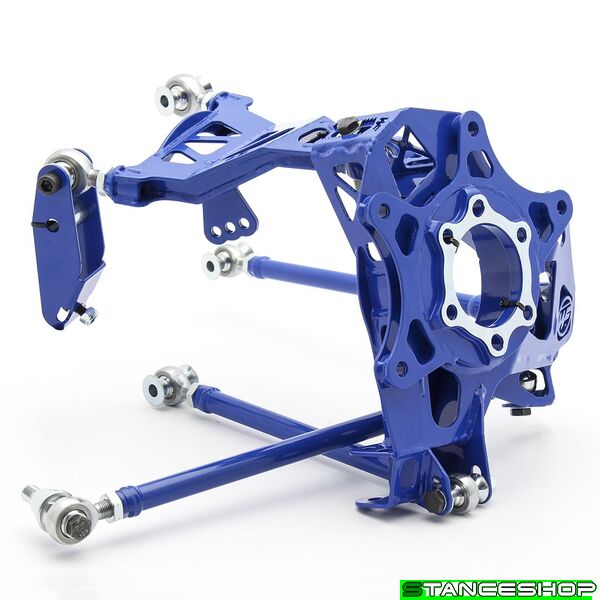

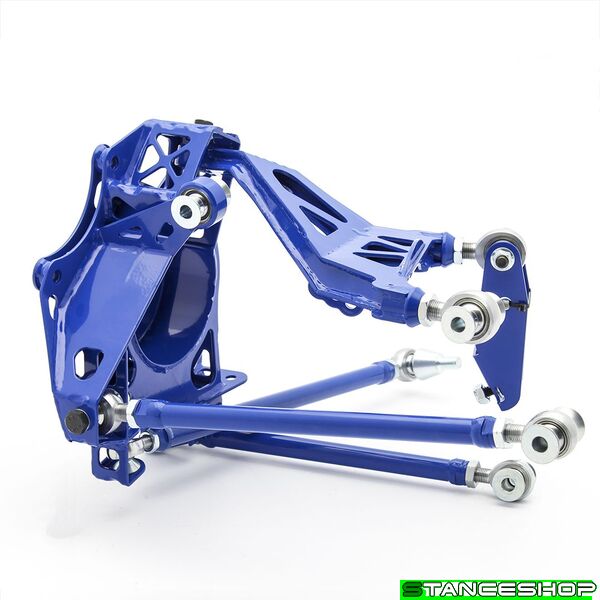

Infiniti G37 Rear Suspension Drop Knuckle Kit
- Revised kinematics, not just dropped knuckle.
Wisefab Infiniti G37 kit will give a good kinematics with lowered car - higher roll center, antisquat, revised cambergain and bumpsteer for maximum grip. - About the same weight as original aluminium suspension.
All the metal components on Wisefab G37 rear suspension are from high strenght steel, including sheetmetal components, tubes, tube ends and rod end housings. - Easy camber adjustment.
Special teethed washer is used for adjustment. - Bump steer adjustment.
Possibility to adjust bump steer by changing rod end location in a slot. - Anti-squat adjustment.
Possibility to adjust anti-squat by changing the top forward link height on upright. - Adjustable antiroll bar (swaybar) motion ratio.
There are 3 possibilities for antiroll bar drop link attachments.
Changing antiroll bar motion ratio is quick and easy way to tune your car understeer/oversteer.
Kit includes:

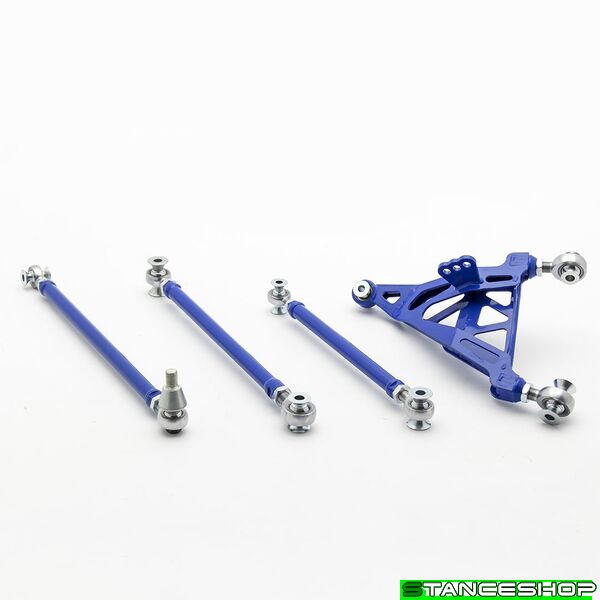

- Pre-set suspension links.
- Knuckles with hardware.
- Pick-up pount relocating bracket.
- Installation guide.
Other components
- Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
- This kit assumes coilovers to adjust ride height and use spring around the shock not on rear link.
- Possibility to use either original 370Z , 350Z or S-Chassis hub with bigger CV joint.
Minimum rim size is 17.
Complete parts
2
Suspension Arm #2
WF371_200A
145.00€
4
Suspension Arm #4
WF371_400A
200.00€
5
Suspension Arm #5
WF371_500A
145.00€
Right Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Camber Adjustmen
WF351_118
4.20€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
9
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
10
Hub Spacer
WF371_102
7.30€
11
Spacer ID12 OD16 h14.5
WF113_913
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
Left Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Camber Adjustmen
WF351_118
4.20€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
9
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
10
Hub Spacer
WF371_102
7.30€
11
Spacer ID12 OD16 h14.5
WF113_913
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
Suspension Arm #2
1
Suspension Arm #2
WF371_200A
145.00€
2
ID12 OD14 h19
WF371_902
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Spacer ID12 OD16 h10
WF013_903
8.40€
7
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
Left Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h11.9
WF113_903
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
ID12 OD16 h16.5
WF371_903
8.40€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Spacer ID12 OD16 h14.5
WF113_913
8.40€
7
Spacer ID10 OD12 h14
WF080_906
8.40€
8
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
9
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Right Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h11.9
WF113_903
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
ID12 OD16 h16.5
WF371_903
8.40€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Spacer ID12 OD16 h14.5
WF113_913
8.40€
7
Spacer ID10 OD12 h14
WF080_906
8.40€
8
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
9
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Suspension Arm #4
1
Suspension Arm #4
WF371_400A
200.00€
2
ID20 OD35 Spherical Bearing Housing Washer
WF700_909
7.30€
3
ID20 OD35 Spherical Bearing Housing M16x1.5
WF700_907
70.00€
4
Spherical ID20/OD35
SSPHERICAL 20/35
21.00€
5
C-Clip InternalSTD d35 ST DIN472
B04135SD472
1.50€
6
ID20 OD35 Spherical Bearing Housing Spacer
WF700_908
10.00€
7
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
8
Adjuster M14x1.5 LH FEM M16x1.5 FEM
WF371_904
19.00€
9
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
10
Spacer ID10 OD14 h 9
WF861_903
7.30€
11
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
Suspension Arm #5
1
Suspension Arm #5
WF371_500A
145.00€
2
Spacer ID12 OD14 h15.5
WF351_902
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Spacer ID10 OD12 h14
WF080_906
8.40€
7
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
