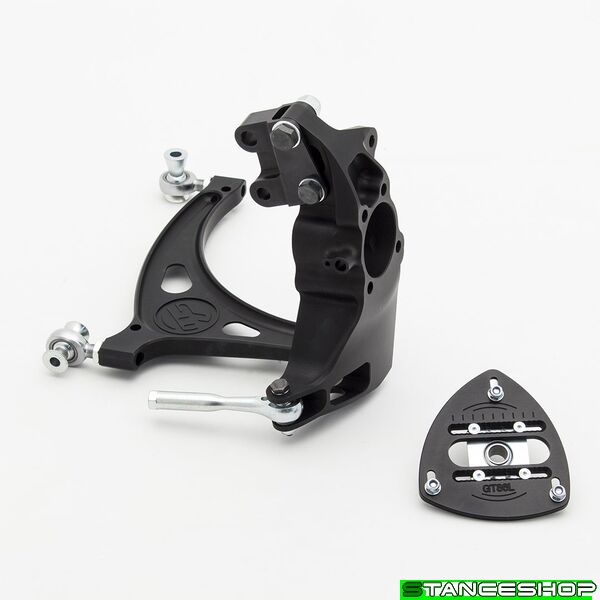

Scion FRS Front Suspension Drop Knuckle Kit

  • Revised kinematics.
    Wisefab Toyota GT86 front suspension kit will bring the roll center and camber gain back to normal range, providing better roll stiffness, better handling and grip. It has about 45mm A-arm joint drop compare to original knuckle.
  • 7 kg of weight reduction
    over original components and still maintaining required strength and stiffness.
  • 7075-T6 aluminium
    billet CNC knuckles and arms with optimized design and all double shear connections provide low weight and high strenght.
  • CrMo rod ends and sphericals used instead of rubber bushings.
  • Quicker steering ratio.
    Steering ratio is slightly quicker compare to original.
  • More caster.

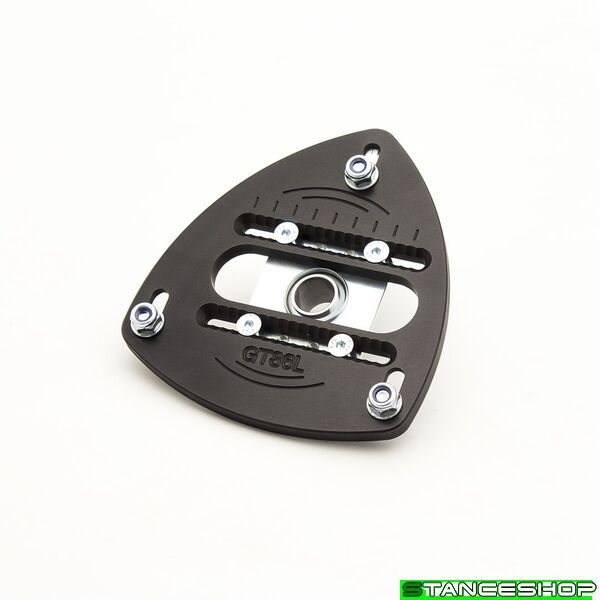

    Suspension kit comes with camberplate that has separate camber/caster adjustment. Initially the caster is set to 6 degrees.
  • Trackwidth adjustment.
    A-arm rod ends are placed parallel to allow track adjustments. Needed trackwidth could depend on: fender (if original or widened fenders are used), rim width / offset, race series rules. Therefore the track can be adjusted by 24mm. Small cut to chassis is needed to accomodate Wisefab arm.

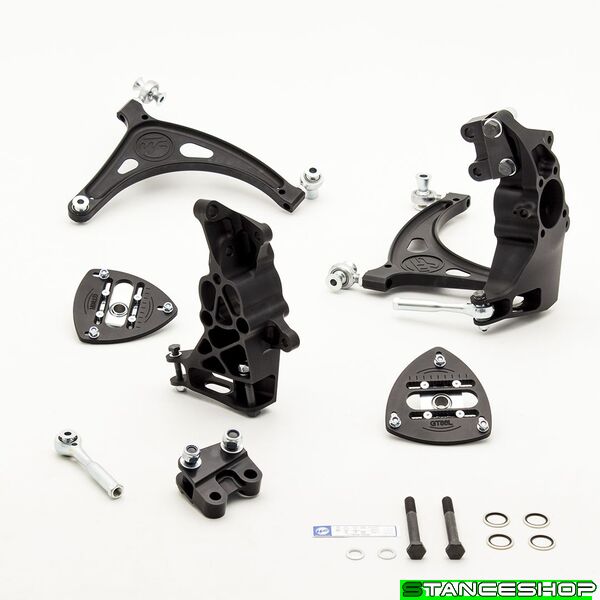

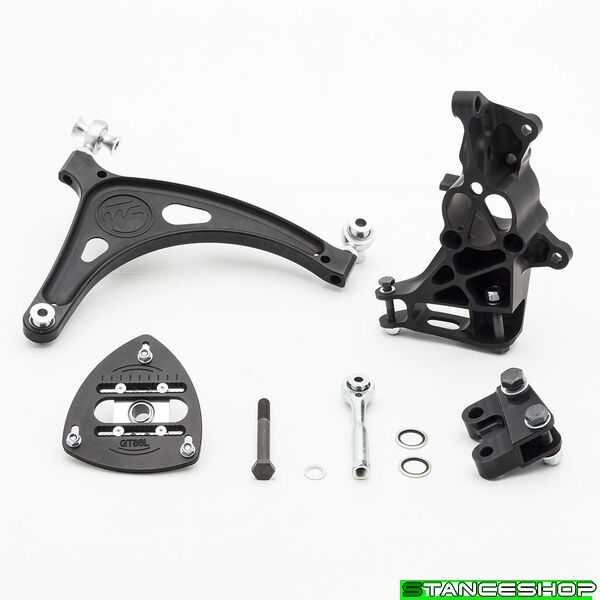

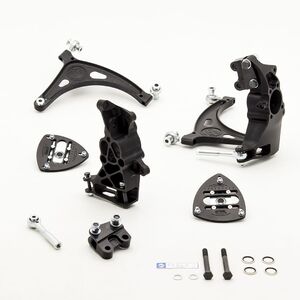

Kit includes:

  • Pre-set lower control arms.
  • Knuckles with hardware.
  • Assembeled tie rods.
  • Coilover upper mounts.
  • Lock limiter washers.
  • Installation guide.



Other components, packaging and clearance.

  • This kit assumes coilovers.
  • Minimum rim size is 17“.
  • Recommended backspacing is 135-140mm (7“ ET40; 8“ ET30; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
  • Original wheel speed sensor can be used.
  • e used.

Complete parts

1

Knuckle
Left
WF862_100LA
570.00€
Right
WF862_100RA
570.00€
2

Lower Control Arm
Left
WF862_200LA
390.00€
Right
WF862_200RA
390.00€
3

Tie Rod Assembly
WF862_600A
105.00€
4

Top Mount
Left
WF862_500LA
110.00€
Right
WF862_500RA
110.00€
5

Knuckle Damper Mount
WF862_111A
105.00€
6

Adjustment Sticker
A_KL_GT86
6.00€

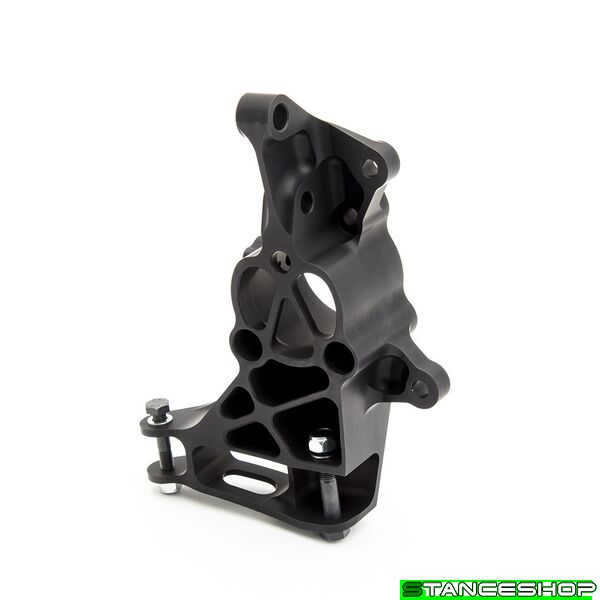

Left Knuckle

1

Knuckle
Left
WF862_100LA
570.00€
2

Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
3

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
4

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
5

Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
6

Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
7

Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
8

Hub Center Ring
WF862_905
17.00€

Right Knuckle

1

Knuckle
Right
WF862_100RA
570.00€
2

Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
3

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
4

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
5

Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
6

Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
7

Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
8

Hub Center Ring
WF862_905
17.00€

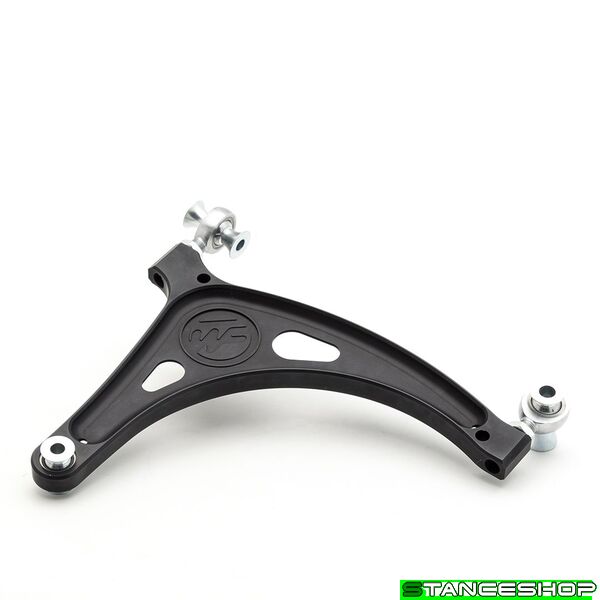

Left Lower Control Arm

1

Lower Control Arm
Left
WF862_200LA
390.00€
2

Rod end 16x1.5 RH male CrMo
3

Spacer ID12 OD16 h18
WF136_903
8.40€
4

Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
5

Spacer ID14 OD16 h29
WF860_902
8.40€
6

Spacer ID14 OD16 h10
WF036_903
8.40€
7

Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
8

Bolt Hex M14x1.5x120 RH 10.9 ST DIN 960
9

Spacer ID12 OD16 h10
WF013_903
8.40€
10

C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
11

Spherical ID16/OD32

Right Lower Control Arm

1

Lower Control Arm
Right
WF862_200RA
390.00€
2

Rod end 16x1.5 RH male CrMo
3

Spacer ID12 OD16 h18
WF136_903
8.40€
4

Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
5

Spacer ID14 OD16 h29
WF860_902
8.40€
6

Spacer ID14 OD16 h10
WF036_903
8.40€
7

Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
8

Bolt Hex M14x1.5x120 RH 10.9 ST DIN 960
9

Spacer ID12 OD16 h10
WF013_903
8.40€
10

C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
11

Spherical ID16/OD32

Tie Rod Assembly

1

Tie Rod Assembly
WF862_600A
105.00€
2

Spacer ID10 OD12 h 7
WF862_902
7.30€
3

Spherical ID12/OD26
4

C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
5

Washer Hydraulic 3/4in x2 ZN

Left Top Mount

1

Top Mount
Left
WF862_500LA
110.00€
2

Camber Plate Spherical Housing REG
WF013_917A
50.00€
3

Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
4

Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
5

Nut Hex Flange M 8x1.25 RH 8.8 ZN

Right Top Mount

1

Top Mount
Right
WF862_500RA
110.00€
2

Camber Plate Spherical Housing REG
WF013_917A
50.00€
3

Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
4

Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
5

Nut Hex Flange M 8x1.25 RH 8.8 ZN

Knuckle Damper Mount

1

Knuckle Damper Mount
WF862_111A
105.00€
2

Bolt Hex M16x1.5x 60 RH 10.9 ST DIN 960
3

Washer Flat M16 ZN DIN125
B03116NAZD125
1.50€
4

Nut Nylock M16x1.5 RH 8.8 ZN DIN985-8
5

Bolt Hex M14x1.5x 60 RH 10.9 ST DIN 960
6

Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
7

Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
Image currently unavailable

Adjustment Sticker

1

Adjustment Sticker
A_KL_GT86
6.00€
